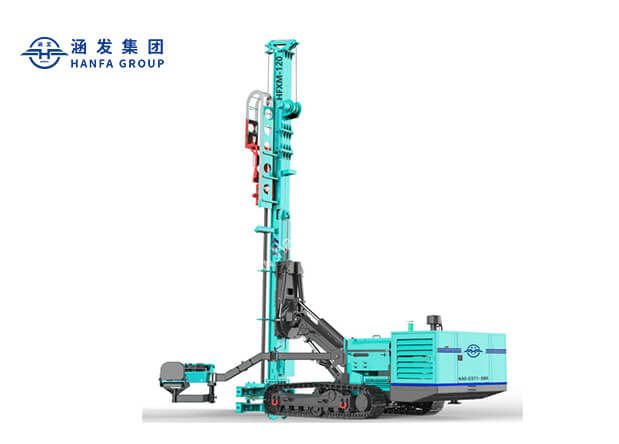

HFXM-120 Anchor Drilling Rig
- Engine Model: QSF3.8t3TC125
- Weight:14.5t
- Engine Power:93kW/2200rpm
- Rotary Torque:9.6kN.m
Features
- 1Multi-degree of freedom luffing mechanism, wider luffing range;
- 2Motor feed system, simple structure and convenient maintenance;
- 3Electro-hydraulic dual-control walking control, convenient for transition walking;
- 4Design of swingable operation table, precise construction operation;
- 5The design of the swingable crawler chassis is better adapted to the tunnel site and the transportation of upper and lower carts;
- 6Clamps, drill masts, power head assembly, etc. adopt modular design to meet the rapid switching of multiple configurations;
- 7 Optional engine preheating system to ensure low temperature starting ability;
- 8Optional advanced geological forecast system, real-time monitoring and storage of drilling data.
TECHNICAL DATA
| Project |
Unit |
Parameter |
|
| Engine parameters |
Engine model |
/ |
QSB4.5-C160-30 |
| Engine power |
kW |
119kW/2200rpm |
|
| Motor parameters |
Motor Power |
kW |
/ |
| Operating Voltage |
V |
/ |
|
| Power head parameters |
Maximum torque |
kNm |
14.1 |
| Maximum speed |
r/min |
68 |
|
| Feed system parameters |
Maximum pulling force |
kN |
70 |
| Maximum feed force |
kN |
70 |
|
| Maximum lifting speed |
m/min |
40 |
|
| Feed rate |
m/min |
40 |
|
| Feed stroke |
mm |
4000 |
|
| Chassis parameters |
Outer track width |
mm |
2280 |
| Total track length |
mm |
3146 |
|
| Clamp parameters |
Clamping range |
mm |
60-415 |
| Maximum horizontal hole height |
mm |
4250 |
|
| Optional drill pipe diameter |
mm |
73 89 102 114 |
|
| Total Weight |
t |
14.5 |
|
| Transport size |
mm |
9800×2280×2800 |
|
