HFPV-398 Photovoltaic Solar Pile Drilling Rig

Drilling Diameter: 90-400mm
Climb ability:45º
Engine Power:93kW
Torque:7500N.m

product Introduction

Machine hydraulic pressure can be adjusted according to different soil texture, so as to achieve the appropriate impact force of pile driving, is a new type of pile driver. The mast has adjustable compensation function, when drilling, the mast is supported on the ground, and the drilling stability is good.

Application

The drilling rig is mainly used for piling photovoltaic solar power plants, highway guardrail piling, highway guardrail construction engineering construction, etc.

  • HF395Y-2_副本
  • HF395Y PILE DRIVER (2)1_副本
  • HF395Y-5_副本
  • HF395Y PILE DRIVER (5)1_副本

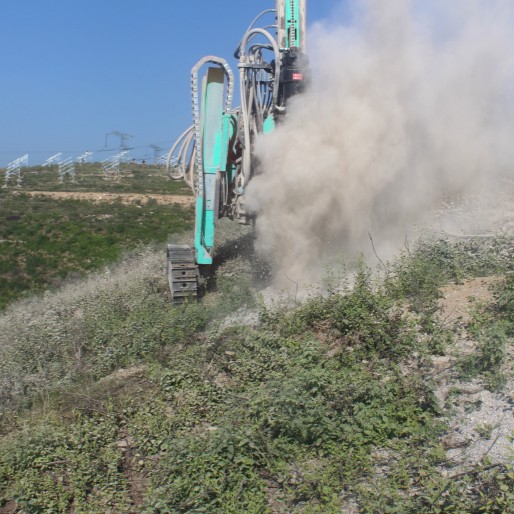

  • HF395Y PILE DRIVER (1)1_副本
  • HF395Y-4_副本

TECHNICAL DATA

Bore diameter(hammer) 90-400mm Bore depth 20-120m
Air consumption 10-26m³/min Air pressure 0.7-1.6Mpa (medium)1.6-2.46Mpa (high)
Pipe diameter 76mm/89mm/102mm For rock F=6-20
Bore diameter(screw) Max 400mm Bore depth 0-30m
Screw pipe diameter 130-400mm Once promotion 2600mm
Skid pitch 120º Swinging angle of drilling boom Left and right total 50º
Swinging angle of skid Left and right total 40º Rotation speed 0-110r/min
Host power 93Kw/WC92Kw Climb ability 45º
Dimension(L*W*H) 5300*2100*2850mm Weight 7300kg
