HFMG-120 Multi-Function Jet Grouting Grilling Rig
- Drilling Diameter: 50-250mm
- Drilling Depth:100-120m
- Input Power:55kW+ 18.5kW + 2.2kW
- Rotary Torque: 6800N.m
product Introduction
HFMG-120 horizontal lift multi-function drilling machine is a full hydraulic crawler drilling machine that integrates anchoring, jet grouting and watering of deep foundation pit slope, it can meet various construction technology requirements.
Based on long-term market research and customer feedbacks, this drilling rig is an engineering drill developed by our company, which is mainly based on the supporting technology of the slope of deep foundation pit and supplemented by the construction of jet grouting. It is characterized by good maneuverability, wider range of operating holes, high efficiency, good drilling quality and low pollution.
Features
- 1Simple system structure, convenient maintenance and low investment.
- 2The horizontal lifting height is up to 3.5 meters, and the lowest is 1.8 meters, which can be used for construction of double row anchor rope at one time.
- 3Selective power ratio can reduce power consumption and improve the working efficiency.
- 4The overall structure is simpler, more reasonable layout, and humanized operation.
- 5Drilling rig with truck crane, effectively reducing the laboring intensity and cost.
- 6Three-wing bit drilling, mud water discharges slag, suitable for high-speed drilling of soil layer and other strata.
- 7Small diameter twist drill drilling (≥ 200mm), suitable for soil layer.
- 8Pneumatic hammer drill, slag removal by air,suitable for construction of rock stratum and crushing stratum.
- 9Casing drilling.
- 10Compound drilling of casing and drill pipe.
- 11Single, double, triple jet grouting, fixed jet construction.

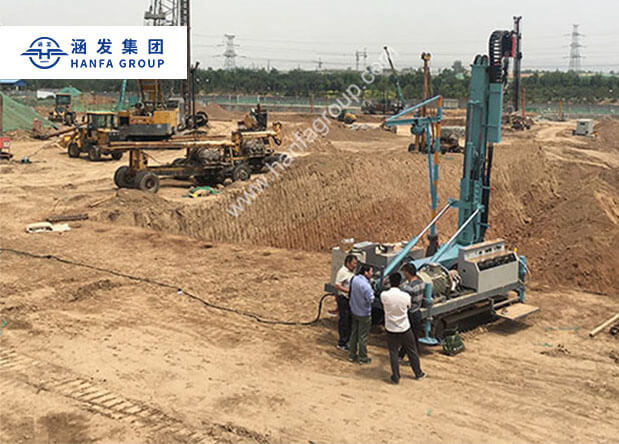

Application
TECHNICAL DATA
| Hole diameter: | ￠50-250mm | |||
| Drilling depth: | 100-120m | |||
| Diameter of drill pipe (mm) : | ￠50 | ￠73 | ￠76 | ￠89 |
| Drill inclination: | Downdip :0-90° | Updip:0-7° | ||
| Power head output speed: | 15-150（r/min） | |||
| Maximum torque of power head: | 6800（N·m） | |||
| Power head stroke: | 3200(mm) | |||
| Lower bracket feeding process: | 900（mm） | |||
| Horizontal lifting height: | Highest：3500mm | Lowest：1800mm | ||
| Rated lifting force of power head: | 50KN | |||
| Input power: | 55KW+18.5KW+2.2KW | |||
| Length * width * height (transportation status) : | 5450x2300x2250(mm) | |||
| Weight: | 7000kg | |||
