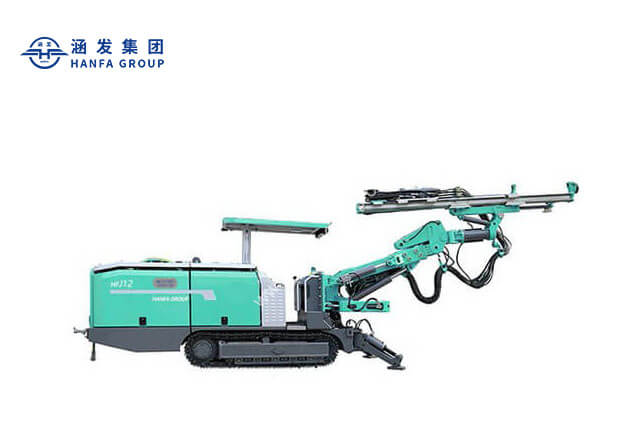

HFJ12 Jumbo Drilling Rig
- Drilling Diameter: 45-89 mm
- Traveling Speed:3.6/2.3km/h
- Engine Power:75kW
- Weight:≤11.5t
product Introduction
Hanfa Group underground tunneling series of drilling RIGS are widely used for underground mining, small tunnel tunneling and bolt hole reinforcement projects. Their well-designed shape, configuration, system control and other aspects will provide customers with a better perforation experience.
HFJ12 is also designed for non-standard roadway. Its width is only 1.2 meters, equipped with heavy track design, capable of turning on the spot and climbing more than 20 slopes, and the product has strong adaptability.
Driving car HFJ12 is a special roadway drivage rig drilling for small, can not only realize level blasting borehole into, can also be used for special applications, such as anchor equipped with highly efficient hydraulic high-frequency drill HF103, maximum power 15 kw, characteristic of the double buffer mechanism can effectively absorb the recoil energy, to ensure the service life of drilling tools, automatic parallel between parallel positioning function to ensure that the borehole, is a replacement of artificial drilling tool.
Features
- 1Hydraulic drilling control system, which can automatically adjust the impact and push pressure according to the change of rotary pressure and push pressure to adapt to the change of rock strata, automatic drilling return function and automatic anti-jamming function;
- 2Double triangle suspension support drill arm can ensure accurate hydraulic parallel holding function in all directions;Heavy-duty telescopic boom, with the most dispersed stresses such as bending, shear and torsion, box structure, bearing capacity of more than 1.5 tons./li>
- 3Tracked chassis, high strength, suitable for various ground conditions;The electrical system USES THE CAN communication connection technology, the module divides the area layout design, the simplification circuit, enhances the reliability;Unique hole bottom slag flushing function, clean drilling, convenient charging.
TECHNICAL DATA
| Perforation range |
45-89 mm |
| Drill pipe specification |
T38-H35 R32/3,090mm |
| Wiertarka skalna model |
HF103M |
| Diesel Engine |
Cummins OSB3.9 - C100-31 |
| Diesel engine power |
75 kW@2,200 rpm |
| Main motor power |
45 kW |
| Pump pressure and displacement |
12bar 4 m³/h |
| Air compressor pressure and displacement |
8bar 0.3m³/min |
| Total length of the propeller |
4,890 mm |
| Walking speed |
3.6/2.3 km/h |
| Climbing angles |
20° |
| Driving turning radius |
Inner R2,535mm outer R4,800mm |
| Work end face size (width × height) |
5,968x5,145 mm |
| Maximum working area |
28 m² |
| Dimension (L x W x H) |
9,900*1,240*1,990/2,690mm |
| Weight |
≤11.5T |
