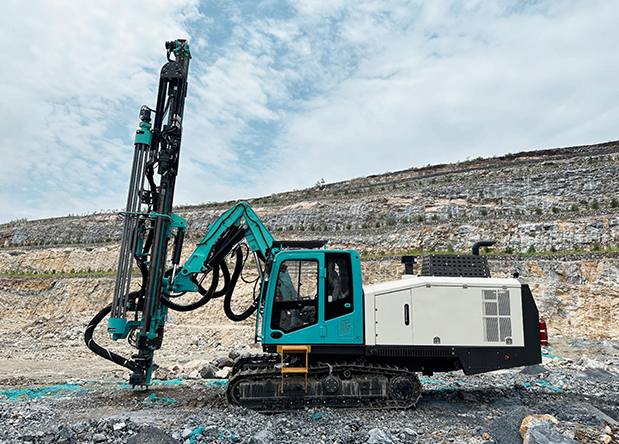

HF120H DTH Blasting Drilling Rig
- Drilling Diameter: 76–127mm
- Boom Type: Telescopic boom
- Engine Output: Cummins 179kW
- Rod Length: 3,660mm
Advantages of full hydraulic drilling Rig
Classic drill rig frame structure and system, with telescopic boom and oscillation, HF120 series surface top-hammerdrill rig can be widely used in various mining and construction applications. Equipped by high-performance rockdrill and drilling control system, together with the mechanical rod changer and anti-jamming design, which makes the drill rigs efficient and reliable, HF120 series drill rigs are the ideal choice for all kinds of project construction and mining.
Features
-
High integrated efficiency
Rock Drill to ensure efficient drilling.
-
Low operating cost
Advanced drilling control system ensures drilling quality.Load sensitive ulic system and air compressor management system greatly reduce fuel consumption.
-
Better Fuel Consumption and Efficiency
Gullwing style covers make service much easier.
-
Safety and environmental protection
The design concept of MSAFETY FIRST" and ''ENVIRONMENTAL PR ECTION" ensures the construction of green mines.The design concept of MSAFETY FIRST" and ''ENVIRONMENTAL PR ECTION" ensures the construction of green mines.
Application
TECHNICAL DATA
|
Model |
HF120 |
HF120H |
|
Hole Diameter |
76--115mm |
76--127mm |
|
Boom Type |
Telescopic boom |
Telescopic boom |
|
Drilling Rod |
T51 |
T51 |
|
Rod Length |
3,660mm |
3,660mm |
|
Rock Drill Output |
20 kW |
22 kW |
|
Engine Output |
Cummins 164kW |
Cummins 179kW |
| Air Flow & Pressure |
8.1 m³/min @10bar |
9.6m³/min @10bar |
|
Transport Dimension |
11,300*2,550*3,700mm |
11,300*2,550*3,700mm |
|
Weight |
16500kg |
16500kg |
