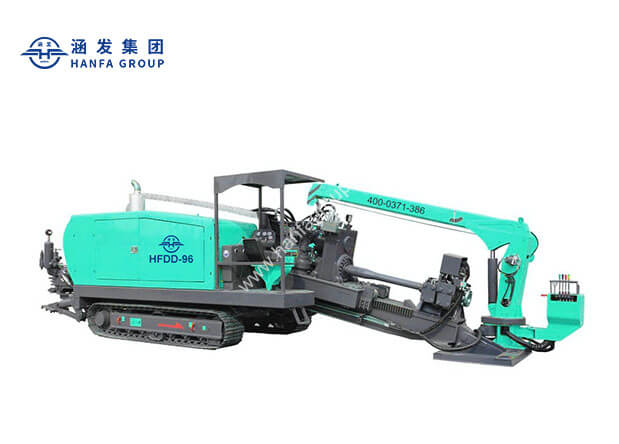

HFDD-96 Horizontal Directional Drilling Rig
- Max. Push capacity: 48-96t
- Max. Pull capacity:48-96t
- Engine Power:194kW
- Rotary Torque:23500N.m
Features
- 1Adopt many advanced control technologies such as closed energy-saving loop, load sensitive control, electro-hydraulic proportional control, imported components, and reliable quality;
- 2The rack and pinion push and pull to ensure the stability of the power head and the reliability of transmission. The power head floating technology greatly protects the drill pipe thread and improves the service life of the drill pipe;
- 3The Plus power model doubles the drag force of the power head and improves the ability to control the construction risk of the drilling rig.
TECHNICAL DATA
| Project |
HFDD-48 |
HFDD-96 |
||
| Engine |
Model |
/ |
CumminsQSC8.3-C260 |
CumminsQSC8.3-C260 |
| Rated power |
kW/r/min |
194/2200 |
194/2200 |
|
| Push and pull |
Maximum push-pull force |
t |
48 |
96 |
| Maximum push-pull speed |
m/min |
42 |
28 |
|
| Spin |
Torque |
N·m |
23500 |
23500 |
| Maximum speed |
r/min |
135 |
135 |
|
| Mud pump |
Maximum flow |
L/min |
600 |
600 |
| Maximum pressure |
MPa |
10 |
10 |
|
| Drill pipe |
mm×m |
φ89×4.5 |
φ89×4.5 |
|
| Truck mounted crane |
Lifting weight |
t |
2 |
2 |
| Lifting torque |
t•m |
4 |
4 |
|
| Maximum entry angle |
° |
20 |
20 |
|
| Maximum back expansion diameter |
mm |
φ1000 |
φ1000 |
|
| Quality |
t |
13.3 |
13.5 |
|
| Dimensions |
mm |
8800×2280×2610 |
8800×2280×2610 |
|
| Remarks |
/ |
Optional: 1. Fully automatic gripper (drill pipe box); 2. Semi-automatic gripper; 3. Mud antifreeze. |
||
