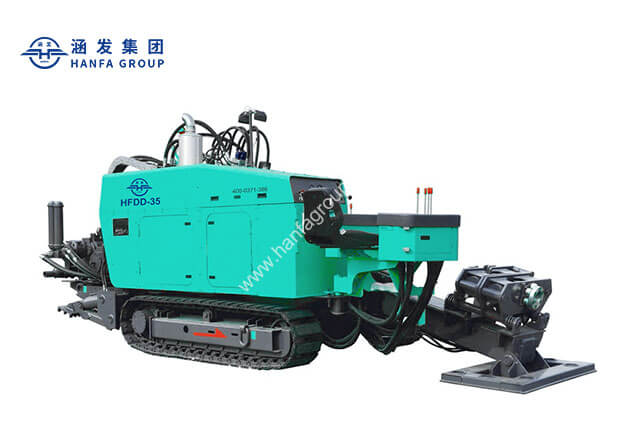

HFDD-35 Horizontal Directional Drilling Rig
- Max. Push capacity: 32-35t
- Max. Pull capacity:32-35t
- Engine Power:154kW
- Rotary Torque:12000-12600N.m
Features
- 1The single-handle hydraulic control pilot system provides comfortable operation performance and flexible adjustment performance for the whole machine. The first-class brand hydraulic components ensure the reliable operation of the whole machine hydraulic system;
- 2The dual floating patented technology of power head and vise can greatly protect the thread of the drill pipe and improve the service life of the drill pipe;
- 3The push-pull of the power head is equipped with a variable plunger motor reducer. Through the rack and pinion structure, the push-pull speed is fast and the operation is reliable.
TECHNICAL DATA
| Project |
HFDD-32 |
HFDD-35 |
||
| Engine |
Model |
/ |
CumminsQSB5.9-C210 |
CumminsQSB5.9-C210 |
| Rated power |
kW/r/min |
154/2200 |
154/2200 |
|
| Push and pull |
Maximum push-pull force |
t |
32 |
35 |
| Maximum push-pull speed |
m/min |
22 |
36 |
|
| Spin |
Torque |
N·m |
12000 |
12600 |
| Maximum speed |
r/min |
140 |
140 |
|
| Mud pump |
Maximum flow |
L/min |
320 |
320 |
| Maximum pressure |
MPa |
8 |
8 |
|
| Drill pipe |
mm×m |
φ73×3 |
φ73×3 |
|
| Truck mounted crane |
Lifting weight |
t |
/ |
/ |
| Lifting torque |
t•m |
/ |
/ |
|
| Maximum entry angle |
° |
20 |
20 |
|
| Maximum back expansion diameter |
mm |
φ800 |
φ800 |
|
| Quality |
t |
10 |
10 |
|
| Dimensions |
mm |
6500×2250×2450 |
6200×2280×2450 |
|
| Remarks |
/ |
Optional: 1. Semi-automatic gripper; 2. Double anchoring; 3. Mud antifreeze; 4. Cleaning water gun |
Optional: 1. Cab; 2. Heating and cooling air conditioning; 3. Fully automatic gripper (drill pipe box); 4. Semi-automatic gripper; 5. Double anchoring; 6. Mud antifreeze; 7. Cleaning water gun; |
|
