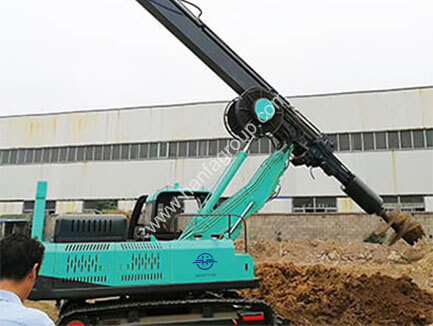

HF360-16 Trailer Type Rotary Drilling Rig/Pilling Rig
- Drilling Diameter: 500-1250mm
- Drilling Depth:18m
- Engine Power:110kW
- Rotary Torque:17000-22000N.m
product Introduction
HF360-16 crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 16m, matching the different specifications of drilling tools, pile hole diameter range up to 500-1500mm.
It has high drilling efficiency ,and After construction, It can quickly move to next worksite . flexible, convenient and efficient, is a national high-speed rail construction-specific piling machinery equipment.
Features
Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc features.
High returns: small investment, quick gains, economic advantages can not be replaced.
Technology patents: patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small machine to drill big piling hole .
Application
This machine is applicable to soil, clay, fill soil, silt, silt layer, and some strata contain pebbles, gravel; widely used in high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.
TECHNICAL DATA
| Model | HF360-16 |
| Working mode | Pressure type drilling |
| Drilling diameter (mm) | Φ500-Φ1250 |
| Max drilling depth(m) | 18 |
| Dimension(mm) | 7500X2300X2950 |
| Total weight(t) | 13.5 |
| Power head torque(N.m) | 17000-22000 |
| Hydraulic system pressure(Mpa) | 30 |
| Rotary speed(r/min) | 0-30 |
| Crawler type | 135-8 |
| Rrotation angle ( °) | 360 |
| Diesel engine power(KW) | 110 |
| Diesel engine rotary speed(r/min) | 2200 |
