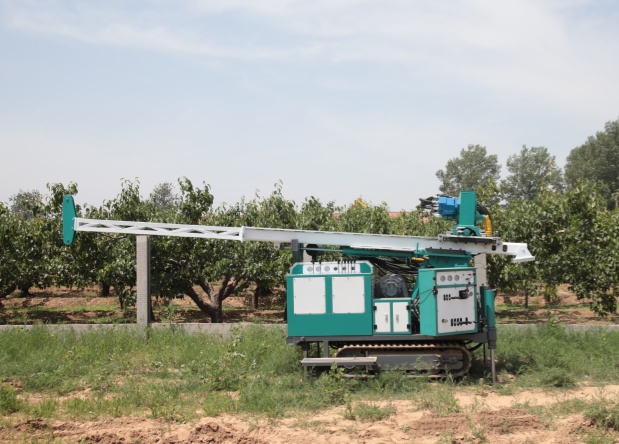

HF-300D Hydraulic core drilling rig
- Model#1: HF300D HF400D
- Model#2: HF600D HF800D
- Drilling depth:300m-800m
- Weight:3.6(T)-7.5(T)
- Drilling Diameter:55-168mm
Product Introduction
1. HF300D is a multifunctional drilling rig independently developed by our company, which can drill 300 meters of core and 150 meters of water well.It can be used for engineering geological exploration ,shallow petroleum and natural gas mining ,mine tunnel ventilation ,drainage,water well drilling and large diameter foundation pile construction, it has intelligent control,safe ,efficient comfortable and innovative features.
2. The HF300D power head can move left and right. Above the power head is a powerful dual hydraulic motor with faster speed, steel crawler with standing pedals, fast movement, and simple and convenient operation panel. HF300D engine power is 60KW, and the engine can be equipped with Yuchai or Cummins. Upgraded hydraulic outriggers have strong stability, good overall hydraulic system performance, high reliability, and significantly improved work efficiency. Angled drill holes are easier to coring and can also be operated with a remote control.
Application
We're here to help: Easy ways to get the answers you need.
TECHNICAL DATA
|
Model（NEW）
|
HF300D
|
HF400D
|
HF600D
|
HF800D
|
|
Max. Drilling depth
|
300m
|
400m
|
600m
|
800m
|
|
Drilling diameter
|
55-168mm
|
55-168mm
|
55-168mm
|
55-168mm
|
|
Drill pipe
|
2Ｍ
|
2Ｍ
|
2Ｍ
|
2Ｍ
|
|
Drilling angle
|
45-90°
|
45-90°
|
45-90°
|
45-90°
|
|
Diesel engine power
|
60KW
|
78KW
|
92KW
|
92KW six-cylinder
|
|
Power head speed
|
100－1100rpm
|
100－1100rpm
|
100－1100rpm
|
100－1300rpm
|
|
power head torque
|
280－2100N.m
|
280－2100N.m
|
280－2400N.m
|
280－2800N.m
|
|
Total Weight
|
3.6t
|
4.1t
|
5.5t
|
7.5t
|
|
Dimensions
|
3.6m*1.3m*1.7m
|
3.6m*1.5m*1.8m
|
3.6m*1.8m*2.1m
|
3.8m*2m*2.5m
|
